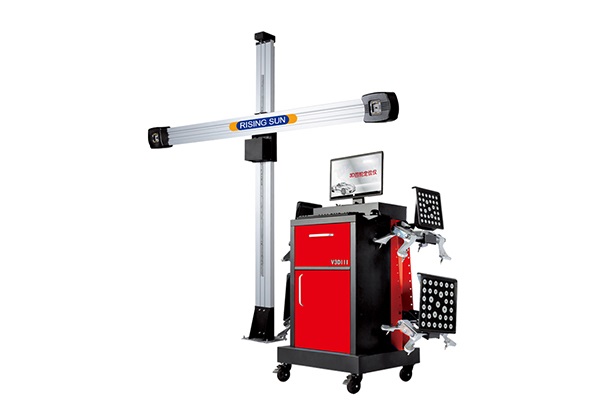

RS 3DIII 3D Wheel Alignment System
Category: Garage Equipment
Sub Category: Wheel Aligners
Main Features
- Comes with Windows 7 computer system with HP computer and mobile cabinet.
- Automatic adjustment for height of camera beam, automatic tracking of the target plates.
- Automatic checking for height of car lift.
- Automatic calibration of the camera.
- Black-box functions for data to be retrieved for future analysis.
- Quicker alignment with guiding menu, can read database within 3 minutes.
- 3D animated measurement easy for training and operation.
- All OEM vehicle database.
- Manual input of height of vehicle available.
- “MKS” measurement specially for Mercedes Benz.
- Available for single-wheel positioning, two-wheel positioning, four-wheel positioning.
- 26 different languages including English.
- Adjustment function for FORD bushing.
- Instruction function for North star shims.
- Measurement for Caster Trail.
- Measurement for Scrub Radius & SAI.
- Cradle adjustment for motor.
- A-Arm resetting on turntable.
- Adjustment for Camber at Zero Toe
- Drag Link adjustment to ensure the steering wheel in the middle.
- Single tie rod adjustment.
Standard Accessories Included |
|
Technical Data | |||
Item | Measurement Accuracy | Measurement Range | Total Measurement Range |
Camber | ±0.01° | ±8° | ±8° |
Caster | ±0.05° | ±19° | ±19° |
Front wheel KPI | ±0.02° | ±19° | ±19° |
Total Toe | ±0.01° | ±2° | ±8° |
Rear wheel thrust angle | ±0.01° | ±2° | ±4° |
Toe-out on turn | ±0.08° | ±2° | ±40° |
Axle offset of Rear wheel | ±0.02° | ±2° | ±4° |
Wheel tread difference | ±0.03° | ±2° | ±8° |
Front setback | ±0.02° | ±2° | ±4° |
Rear setback | ±0.02° | ±2° | ±4° |
Wheel tread | ±0.64cm(±0.25cm) | <265cm(<105in) | <265cm(<105in) |
Wheelbase | ±0.64cm(±0.25cm) | <533cm(<210in) | <533cm(<210in) |
